| Lieferfrist | Eingesendet 2 - 3 - tag(e) |
| Artikelnummer | 46229 |
| EAN | 6096018845898 |
| Abmessung A | 35mm |
| Dimension B | 20mm |
| Dimension C | 1.1/4" BSP |
| Dimension D | SW46 |
| Dimension E | Rd58x1/6" |
| Gewinde | 1.1/4" |
| Gewinde | Rd58x1/6" |
| Material | Edelstahl 304 |
| Modell | Drahtstücke |
| Nennweite | DN32 |
| Rauheit Material | <0.8 µm |
| Seite A - maß | DN32 DIN 11851 Draadstuk |
| Seite B - maß | 1-1/4" BSP Binnendraad |
| Technisches Material | RVS 304 (1.4301) |
| Type 2 | Opschroefdraadstuk |
| Verbindung | Gewindestück x BSP Bi |
| Auch gefunden in | |
| Milch Verschraubungen DIN 11851 | |

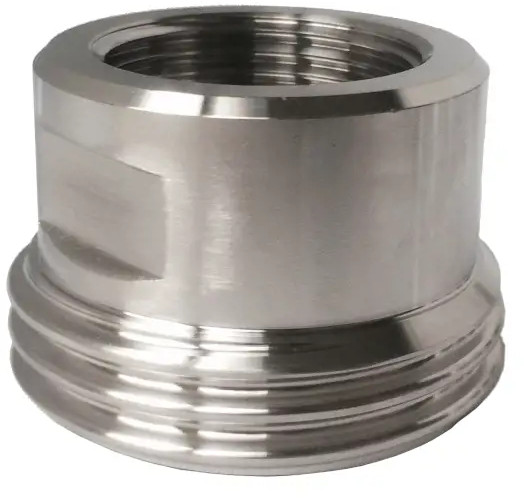

Coupling according to DIN11851 one side male adapter (without gasket) - DN32 other side BSPP female thread (flat sealing/without thread gasket) - 1 1/4" surface roughness approx. 0.8Ra inside, 1.6Ra outside made of stainless steel AISI 316 - 25 bar
